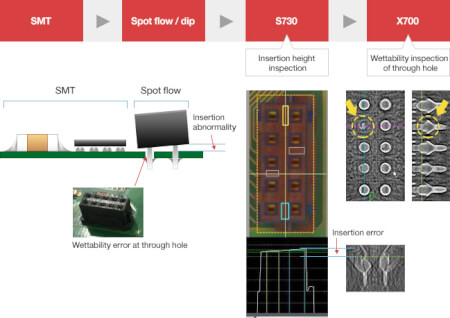

Example where the post-reflow inspection machine was used in combination with the CT inspection machine

Component insertion error, and through hole wettability error

The present situation is that soldering quality assurance in the flow and local dipping process executed after the SMT process is carried out only by visual inspection in most cases. The full coverage of inspection is realized by the height check of VT-S730 enabling the component insertion inspection, and VT-X700 enabling the wettability inspection to the through hole.
